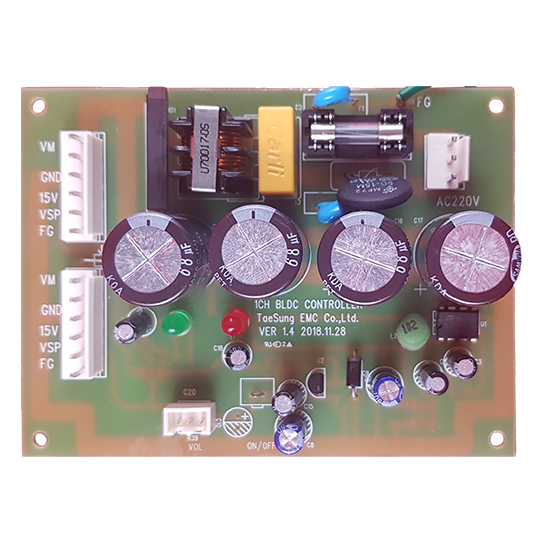

This is a high-efficiency control board capable of simultaneously controlling up to two motors with a capacity of 250W each. It is primarily integrated into residential and commercial ventilation systems, air purifiers, and custom home appliances to precisely control motor speed and operation.
| Category | Specification |
|---|---|
| Power Supply | AC 220V 50/60Hz |
| Capacitor Capacity | 68㎌ × 4EA |
| Allowable Power | 250W Class |
| Number of Connected Motors | 1EA |

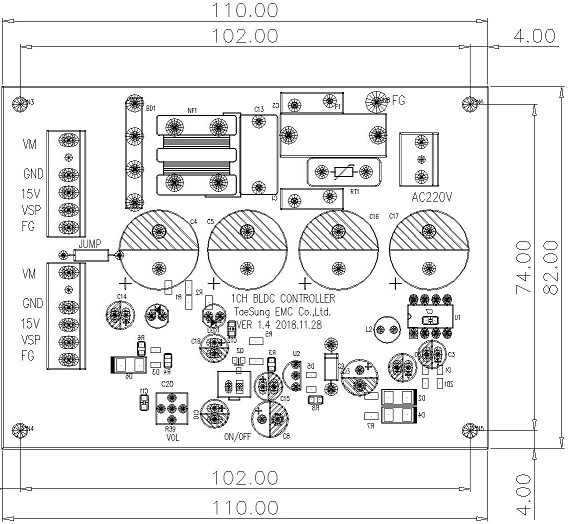

| SIZE (mm) | 110×82 (Hole Spacing 100×72, Hole Size Ø4) |
| Operating Temperature | -20~65℃ |
